Flow 1: Enrollment from X-Pay wallet

This flow is also known as In-App Verification.

This flow starts from the digital wallet app. The cardholder starts enrollment by scanning or entering the card information.

Green and Yellow paths

At the start of the enrollment, The provider assesses the cardholder risk.This risk level trigers these paths:

Color	workflow
	green path (a.k.a green flow): X-Pay provider approves the provisioning request autonomousl
	yellow path (a.k.a yellow flow): X-Pay provider asks the partner for a strong customer authentication
	orange path (a.k.a orange flow): X-Pay provider declines the provisioning request
	red path (a.k.a red flow): X-Pay provider declines the provisioning request

Only green and yellow paths are described below.

User journey

Action	Path	workflow

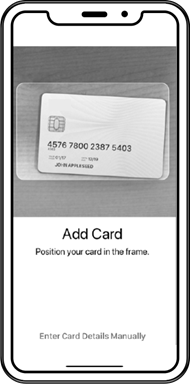

Scan or enter card number	green and yellow paths

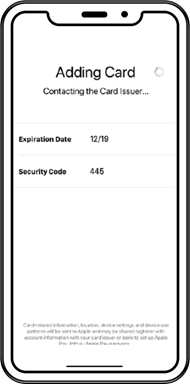

Enter expiry date and CVV	green and yellow paths

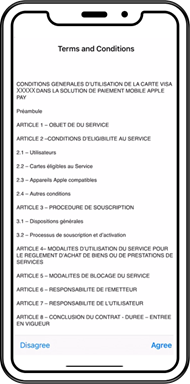

Read and accept T&C 1 2 3	green and yellow paths

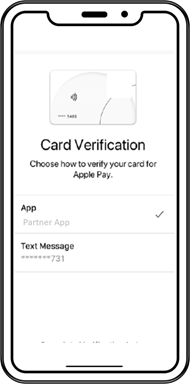

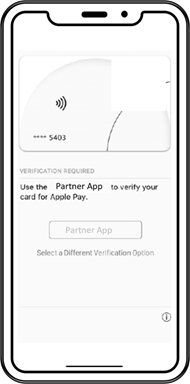

Choose verification method(call center, in-app, OTP SMS)	yellow path only
Open partner app	yellow path only

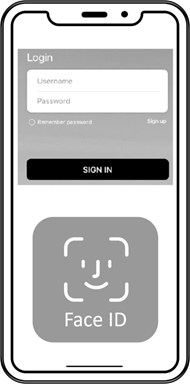

Log in to the partner app	yellow path only

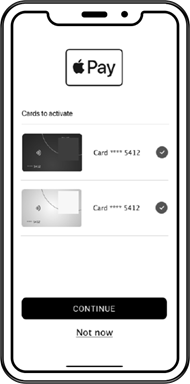

Choose which card(s) to verify	yellow path only

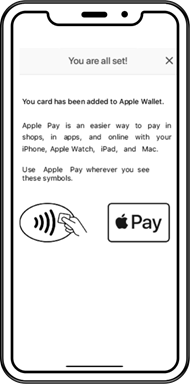

X-Pay Enrollment confirmation message	yellow path only

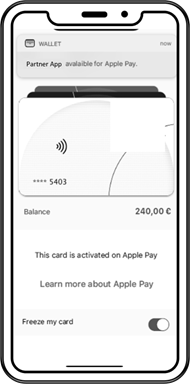

X-Pay Enrollment confirmation notification	green and yellow paths

Sequence diagram (green path)

sequenceDiagram
autoNumber
    Actor Enduser
    participant Xpay Provider
    participant Xpollens
    participant Partner (Back end)
    participant Partner (App)

    Enduser -->> Xpay Provider: camera scan or manual input of card details <br/> (number, expiry date, CVV)
    Xpay Provider -->> Xpollens: Provisionning <br /> (does no impact end-user balances)
    Xpollens -->> Partner (Back end): Webhook Type 25 (status Active)

Sequence diagram (yellow path)

sequenceDiagram

autonumber

    Actor Enduser

    participant X-Pay provider

    participant Xpollens

    participant Partner(back-end)

    participant Partner(App)

    participant SCA_Provider



    Enduser ->> X-Pay provider: camera scan or manual input of card details<br/> (number, expiry date, CVV)

    X-Pay provider ->> Xpollens: Provisioning<br/> (does not impact end-user balances)



    Xpollens ->> Partner(back-end): Webhook Type 25 (status Inactive)

    X-Pay provider ->> Partner(App): App opening

    Partner(App) ->> Enduser: App connection



    Partner(back-end) ->> Xpollens: Get all tokens by card<br/>Checks if there are inactive tokens to verify

    Xpollens ->> Partner(back-end): Tokens status

    Partner(back-end) ->> Partner(App): Send card to activate

    Partner(App) ->> Enduser: Display card to activate

    Enduser ->> Partner(App): Choice of card to activate

    Partner(App) ->> SCA_Provider: Strong authentication notification

    SCA_Provider ->> Enduser: Strong authentication notification

    Enduser ->> SCA_Provider: SCA validated

    SCA_Provider ->> Partner(back-end): offline_authentication_token



    Partner(back-end) ->> Xpollens: In-App Verification Activation<br/>POST /api/sca/normal/v2.0/{{appUserId}}/token/xpayInAppVerifActivation/{{cardExternalRef}}<br/>with offline_authentication_token

    Xpollens -->> Xpollens: Business checks



    alt Business check KO

        Xpollens -->> Partner(back-end): HTTP 403<br/>Error: "The token does not meet the requirements for activation. The card is not in the right status or is blocked."

    else Business check OK

        Xpollens -->> Partner(back-end): HTTP 200, actionCode 00

    end



    Partner(back-end) -->> Partner(App): Card successfully added to X-Pay provider

    X-Pay provider ->> Xpollens: Provisioning<br/> (does not impact end-user balances)

    Xpollens ->> Partner(back-end): Webhook Type 25 (status Active)

In-App Verification Activation

This endpoint is useful only for Yellow flow. It must be called by the partner back end only if the user is strongly authenticated and approves the process.

POST /api/sca/normal/v2.0/{{appUserId}}/token/xpayInAppVerifActivation/{{cardExternalRef}}

Header

Request Body:

{
"tokenReferenceID": "string",
"tokenRequestorID": "string"
}

Read more about In-App Verification Activation here:

🔗 API Reference - Cards - Xpay

Token status diagram

stateDiagram
    [*] --> INACTIVE : token created

    INACTIVE --> ACTIVATED: token activated
    INACTIVE --> DELETED
    ACTIVATED --> DELETED : permanently deactivated
    ACTIVATED --> SUSPENDED : temporarily suspended
    SUSPENDED --> ACTIVATED

    DELETED --> [*]
    SUSPENDED --> [*]

The token status changes to SUSPENDED if:

• the card is temporarily blocked

The token status changes to DELETED if:

• the card is deleted from the wallet
• the card is opposed

General rules

A card can be added to the wallet as soon as its status is ACTIVATED.

If a token is not activated within 30 days of its creation, its status changes to DELETED.

During provisioning, VISA creates an authorization on the associated card. This authorization does not impact the user's balance and is not visible to either you or the end user.

In case of multiple tokens to activate, we recommend differentiating them by:

• Displaying the type of device used for enrollment
• Displaying the enrollment date.

Apple pay in app verif

For Apple pay, the information needed by Xpollens are:

• the mobile banking app id, which is the team id + the bundle id
• the deeplink which redirect the enduser to the process in app verification (in your app)

Samsung & Google pay in app verif

For Samsung and Google pay, the information needed by Xpollens is the app bundleId.

Then the following actions have to be taken into account:

1. create the activity a2a in your app: this method must be named Package Name.a2a
2. use this activity to redirect the enduser to the in app verif process
3. redirect the enduser to the wallet

Find more details in these websites:

🔗https://developer.samsung.com/pay/ID&V/implementing-app2app-id&v.html
🔗https://developers.google.com/pay/issuers/tsp-integration/app-to-app-idv

How to test

The Xpay can not be tested in sandbox.
As a consequence, first tokenisation are processed in production, on whitelisted PANs.
