FATCA / CRS

Financial institutions are required to collect and assess information about their customers' tax residences and, where applicable, report relevant financial account information to the competent tax authorities.

The Xpollens FATCA/CRS feature supports this process by:

• collecting the customer's tax-residency information;
• checking the consistency of the declaration against information already known about the customer;

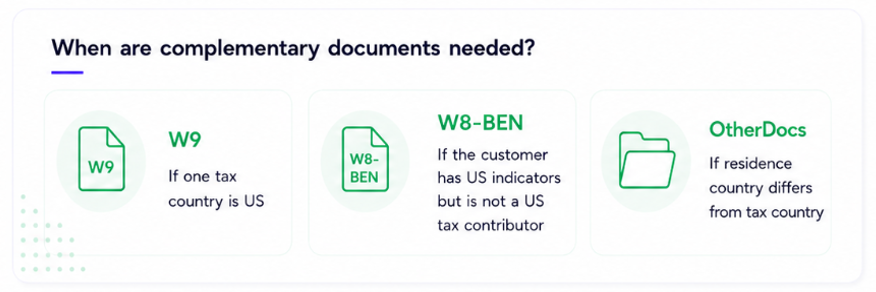

• requesting supporting documents when required;
• generating a FATCA/CRS self-certification;
• allowing the customer to review, sign, reject or later revoke the self-certification;
• notifying the partner of lifecycle changes through callbacks;
• requesting a new self-certification when the existing one becomes obsolete or expires.

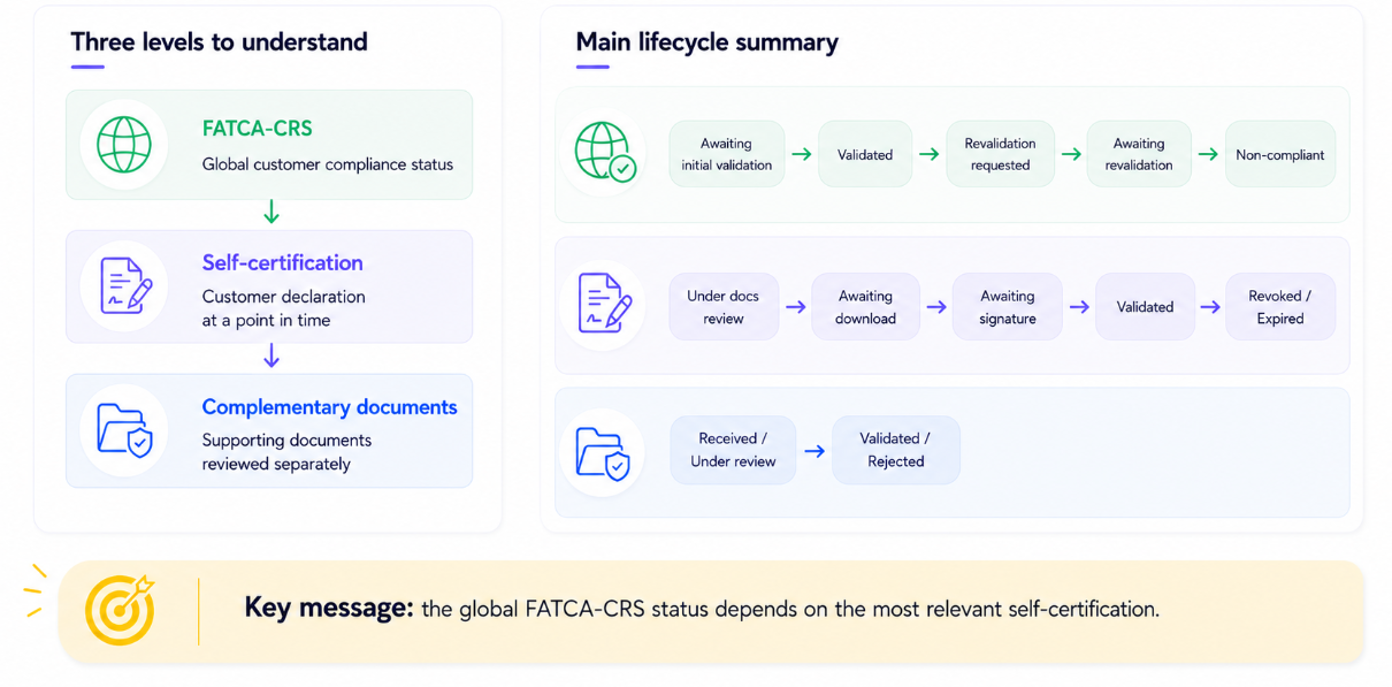

The FATCA/CRS process contains three related but independent lifecycles:

1. the overall FATCA/CRS declaration;
2. each self-certification;
3. the supporting attachments associated with a self-certification.

Terminology

This guide uses FATCA/CRS for the overall process. Some existing technical fields and historical documentation use FATCA/EAI. EAI means Échange automatique d'informations and is used here as an implementation term related to CRS.

Definitions

FATCA

FATCA stands for Foreign Account Tax Compliance Act. It is a United States tax-compliance framework intended to identify and report financial accounts held outside the United States by certain US persons.

CRS / EAI

CRS stands for Common Reporting Standard. It is the OECD standard under which participating jurisdictions collect information from financial institutions and automatically exchange financial account information with other participating jurisdictions.

In French documentation, this mechanism is also referred to as EAI (Échange automatique d'informations).

https://www.oecd.org/tax/automaticexchange.htm

TIN

A TIN (Tax Identification Number) is the tax identifier issued by a jurisdiction to a taxpayer.

TIN requirements and formats depend on:

• the tax country;
• the customer type;
• the current version of the Xpollens TIN referential.

The TIN rules must therefore not be hard-coded from this functional guide. Partners should consume the dedicated TIN-format APIs described in TIN formats and referential.

Tax-information consistency check

The consistency check compares the customer's tax declaration with information already known about the customer, such as:

• country of birth;
• nationality;
• country of residence;
• declared tax-residence countries;
• US-person declaration;
• tax identification numbers.

This control is sometimes referred to as vraisemblance.

The consistency check is distinct from document review. Supporting documents may require analysis by the Xpollens Middle Office team.

Scope and prerequisites

The current v4 API describes FATCA/CRS declarations for:

• individuals only

Before starting the process:

1. the user must have been created;
2. the required identity and KYC information must be available;
3. the customer's wallet must be initialized when Strong Customer Authentication is required by the configured journey;
4. the partner must be able to receive FATCA/CRS callbacks;
5. the partner logo used in the self-certification PDF must be configured;
6. the partner should have loaded the current TIN referential.

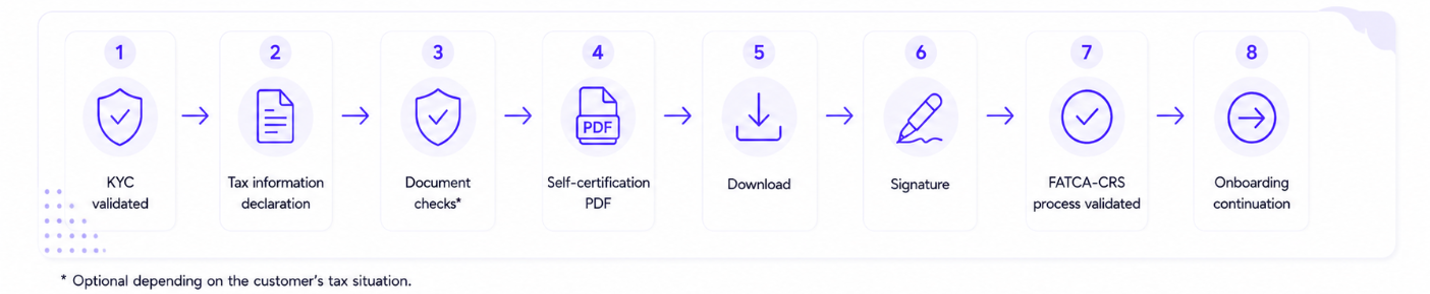

FATCA/CRS steps (Overview)

FATCA/CRS lifecyle

graph TD

classDef action fill:#2f3942,stroke:#aab8c5,stroke-width:1px,stroke-dasharray:5 5,color:#ffffff
classDef status fill:#594300,stroke:#d9a900,stroke-width:1.5px,stroke-dasharray:5 5,color:#ffffff
classDef process fill:#263b4a,stroke:#6f9fbd,stroke-width:1px,color:#ffffff
classDef error fill:#4b2929,stroke:#c96868,stroke-width:1px,color:#ffffff
classDef success fill:#304a35,stroke:#6fa778,stroke-width:1px,color:#ffffff


%% =========================================================
%% INITIAL JOURNEY
%% =========================================================

A["User fills in<br>FATCA/CRS information"]

B["PATCH FATCA-CRS"]

C["Validate request<br><br>Mandatory information<br>US person / tax country consistency<br>TIN mandatory rules<br>TIN format"]

D["AwaitingInitialValidation"]

E["Initial self-certification<br>lifecycle"]

V["Validated"]

ON["Onboarding<br>unblocked"]


A --> B
B --> C
C -->|Request accepted| D
D --> E
E -->|Self-certification validated| V
V --> ON


%% =========================================================
%% API ERRORS
%% =========================================================

subgraph API_errors

    X["400 - Request rejected<br><br>Mandatory information missing<br>US person / tax country inconsistency<br>TIN declaration mandatory<br>TIN format invalid<br>Invalid request"]

    Y["422 - Invalid operation<br>for current status"]

end


C -->|Invalid request| X
X -->|Correct data and resubmit| A

B -->|Operation not allowed<br>in current status| Y


%% =========================================================
%% REVALIDATION TRIGGERS
%% =========================================================

R["RevalidationRequested<br><br>Reason:<br>SelfCertificationExpired<br>SelfCertificationRevokedByCustomer<br>CustomerInformationChanged"]


V -->|Self-certification expires| R

V -->|Relevant customer information changes| R


%% =========================================================
%% USER-INITIATED TAX INFORMATION UPDATE
%% =========================================================

U["Customer wants to update<br>FATCA/CRS information"]

REV["Revoke current valid<br>self-certification"]


V --> U
U --> REV
REV --> R


%% =========================================================
%% REVALIDATION JOURNEY
%% =========================================================

P["PATCH FATCA-CRS<br>Start replacement declaration"]

AR["AwaitingRevalidation"]

RS["Replacement self-certification<br>lifecycle"]

RV["Validated again"]

NC["NonCompliant"]

CA["Compliance action<br>according to product / partner policy"]


R --> P
P --> AR
AR --> RS

RS -->|Replacement self-certification validated| RV

RV -.-> V


%% =========================================================
%% REVALIDATION FAILURE
%% =========================================================

R -->|Remediation deadline reached| NC
AR -->|Remediation deadline reached| NC

NC --> CA


%% =========================================================
%% STYLES
%% =========================================================

class A,ON,U,REV,P,CA action
class B,C,E,RS process
class D,R,AR,NC status
class V,RV success
class X,Y error

FATCA/CRS sequence diagram (Detailed)

The diagram distinguishes:

• synchronous API responses, returned directly to the caller;
• asynchronous callbacks, emitted later when a FATCA/CRS resource changes.

sequenceDiagram
autonumber

actor User
participant Partner
participant XPO as Xpollens

rect rgb(245, 245, 245)
Note over User,XPO: Prerequisites
Note over User,XPO: User created
Note over User,XPO: KYC information available
Note over User,XPO: Wallet initialized when required for SCA
Note over Partner,XPO: FATCA/CRS callbacks configured
end

rect rgb(235, 245, 255)
Note over User,XPO: 1. Collect and submit the FATCA/CRS declaration

Partner-->>User: Display FATCA/CRS questionnaire
User->>Partner: Submit isUSPerson and taxInformation

Partner->>XPO: PATCH /api/v4.0/users/{appUserId}/fatca-crs<br/>or configured SCA-protected equivalent

XPO-->>Partner: Synchronous HTTP response<br/>global FATCA/CRS status<br/>selfCertifications summary<br/>requiredAttachments when applicable

Note over Partner,XPO: The synchronous response gives the state produced by this request
end

rect rgb(255, 248, 230)
Note over User,XPO: 2. Receive asynchronous lifecycle notifications

par Global FATCA/CRS resource changes
XPO-->>Partner: Callback FatcaCrsCreatedOrUpdated<br/>global status and remediation information
and Self-certification resource changes
XPO-->>Partner: Callback FatcaCrsSelfCertificationCreatedOrUpdated<br/>self-certification status<br/>requiredAttachments
end

Note over Partner,XPO: Callbacks notify subsequent or asynchronous state changes
end

rect rgb(255, 250, 225)
Note over User,XPO: 3. Provide supporting attachments when required

alt requiredAttachments is empty
Note over Partner,XPO: Self-certification can continue toward PDF generation
else One or more attachments are required
Partner-->>User: Display required attachment types
User->>Partner: Provide requested document

Partner->>XPO: POST /api/v3.0/users/{appUserId}/fatca/attachments
XPO-->>Partner: Synchronous HTTP 201<br/>created diligence and file key

XPO-->>Partner: Callback FatcaCrsAttachmentCreatedOrUpdated<br/>attachment status: Received / UnderReview / Validated / Rejected

opt Self-certification state changes after attachment processing
XPO-->>Partner: Callback FatcaCrsSelfCertificationCreatedOrUpdated<br/>UnderAttachmentReview or next lifecycle status
end

opt Global FATCA/CRS state changes
XPO-->>Partner: Callback FatcaCrsCreatedOrUpdated<br/>updated global status
end
end
end

rect rgb(240, 255, 240)
Note over User,XPO: 4. Generate and review the self-certification

XPO-->>Partner: Callback FatcaCrsSelfCertificationCreatedOrUpdated<br/>status: UnderPdfGeneration
XPO-->>Partner: Callback FatcaCrsSelfCertificationCreatedOrUpdated<br/>status: AwaitingDownload

Partner->>XPO: GET /api/v4.0/users/{appUserId}/fatca-crs-self-certification/{selfCertificationId}/download
XPO-->>Partner: Synchronous HTTP 200<br/>unsigned PDF
Partner-->>User: Display PDF for review

Note over Partner,XPO: The download changes the status to AwaitingSignature
XPO-->>Partner: Callback FatcaCrsSelfCertificationCreatedOrUpdated<br/>status: AwaitingSignature
end

rect rgb(250, 240, 255)
Note over User,XPO: 5. Sign or reject the self-certification

alt Customer accepts the content
Partner->>XPO: POST /api/sca/v4.0/users/{appUserId}/fatca-crs-self-certification/{selfCertificationId}/sign
XPO-->>Partner: Synchronous HTTP 200<br/>status: UnderSignedPdfGeneration

XPO-->>Partner: Callback FatcaCrsSelfCertificationCreatedOrUpdated<br/>status: UnderSignedPdfGeneration
XPO-->>Partner: Callback FatcaCrsSelfCertificationCreatedOrUpdated<br/>status: Validated
XPO-->>Partner: Callback FatcaCrsCreatedOrUpdated<br/>global status: Validated
else Customer rejects the content
Partner->>XPO: POST /api/v4.0/users/{appUserId}/fatca-crs-self-certification/{selfCertificationId}/reject
XPO-->>Partner: Synchronous HTTP 200<br/>status: Rejected
XPO-->>Partner: Callback FatcaCrsSelfCertificationCreatedOrUpdated<br/>status: Rejected
end
end

rect rgb(235, 255, 235)
Note over User,XPO: 6. Maintain compliance

opt Certification expires, is revoked, or customer information changes
XPO-->>Partner: Callback FatcaCrsCreatedOrUpdated<br/>status: RevalidationRequested<br/>remediation reason and deadline
XPO-->>Partner: Callback FatcaCrsSelfCertificationCreatedOrUpdated<br/>status: Expired or Revoked
Note over User,XPO: A replacement self-certification must be completed before the deadline
end
end

Synchronous response versus callbacks

The PATCH /fatca-crs response and the callbacks serve different purposes.

The partner may therefore learn that an attachment is required:

1. directly from the synchronous PATCH response;
2. from a subsequent FatcaCrsSelfCertificationCreatedOrUpdated callback;
3. by retrieving the latest self-certification details through the GET API.

The partner should treat the API response as the immediate result of the submitted request and the callbacks as notifications of subsequent resource changes. The latest GET response remains the source of truth when reconciliation is necessary.

Process overview

Collect customer tax information

The partner must collect:

• isUSPerson;
• one to three entries in taxInformation;
• taxCountry for each tax residence;
• taxIdentificationNumber when required by the current TIN referential.

TIN format and mandatory-field checks

At this stage, the partner should perform basic checks before submitting the FATCA/CRS declaration:

• verify that all mandatory fields are present;
• determine whether a TIN is mandatory for each declared tax country and customer type;
• validate each supplied TIN against the format defined for the corresponding tax country;
• display the expected format or a user-friendly description when the value is invalid.

For every TIN supplied by the customer, the format must be checked against the tax country associated with it. Depending on the country, the expected format may contain a specific combination of digits, letters and other characters.

The TIN is optional when:

• the tax country is FR;
• the tax country belongs to the list of jurisdictions for which a TIN is optional;
• the tax country is not a CRS/EAI participating jurisdiction.

For all other cases, the TIN is mandatory.

The current implementation must derive this rule from the Xpollens TIN referential returned by:

GET /api/v3.0/tin-formats

The partner must use:

• isTINMandatory to determine whether the field is required;
• acceptedFormats and acceptedFormatsDescription to guide the customer;
• regularExpression to validate the value before submitting the declaration.

The Xpollens referential is the operational source of truth and may evolve through contentVersion. The OECD country pages may be used as a complementary reference for tax-identification-number information:

OECD — Tax identification numbers

TIN referential

TIN requirements vary by country and customer type. Xpollens exposes a versioned referential so that partners can display the correct requirements and validate the input before calling the FATCA/CRS API.

Retrieve the current referential version

GET /api/v3.0/tin-formats/version

Example response:

{
  "description": "Version of the Tax Identification Number format and mandatory countries references for FATCA-CRS",
  "contentVersion": 2
}

The contentVersion increases whenever the referential changes.

The Swagger recommends:

• checking the version periodically, for example once a week;
• or subscribing to the TinFormatsUpdated callback when it is available.

Retrieve all TIN rules

GET /api/v3.0/tin-formats

The response contains:

{
  "description": "Tax Identification Number format references and mandatory countries for FATCA-CRS, categorized by country and user type",
  "contentVersion": 1,
  "values": [
    {
      "countryCode": "AD",
      "userTypes": {
        "individuals": {
          "isTINMandatory": true,
          "acceptedFormats": [
            "E######@",
            "F######@"
          ],
          "acceptedFormatsDescription": "E or F followed by 6 digits and a letter",
          "regularExpression": "^(E|F)\\d{6}[A-Z]$"
        },
        "legalEntities": {
          "isTINMandatory": false,
          "acceptedFormats": [],
          "acceptedFormatsDescription": "...",
          "regularExpression": "..."
        }
      }
    }
  ]
}

Meaning of the TIN-rule fields

The placeholder characters used in acceptedFormats are:

For individual entrepreneurs, the Swagger indicates that the individual TIN format should be used.

Recommended integration strategy

1. Retrieve and cache the TIN referential.
2. Store its contentVersion.
3. Check /tin-formats/version periodically or react to TinFormatsUpdated.
4. Refresh the full referential only when the version changes.
5. Select the entry matching taxCountry.
6. Use the rules for the relevant user type.
7. Display acceptedFormatsDescription to the customer.
8. Enforce isTINMandatory.
9. Validate the value against regularExpression.
10. Still handle server-side errors because the API remains the source of truth.

The historical documentation identifies France and certain other jurisdictions as cases where the TIN may be optional. The integration must nevertheless evaluate the current isTINMandatory value from the versioned Xpollens referential.

French overseas territories

The following country codes are accepted by the consistency rules.

These codes describe product consistency rules and do not constitute legal or tax advice about the customer's actual tax residence.

Submit or update FATCA/CRS information

PATCH /api/v4.0/users/{appUserId}/fatca-crs

The endpoint creates or updates the customer's FATCA/CRS information.

The documented request fields are:

A successful response may contain:

• the FATCA/CRS declaration identifier;
• the global FATCA/CRS status;
• lifecycle dates;
• remediation information;
• recent self-certifications;
• required attachments.

Example request:

{
  "isUSPerson": true,
  "taxInformation": [
    {
      "taxCountry": "FR",
      "taxIdentificationNumber": ""
    },
    {
      "taxCountry": "PT",
      "taxIdentificationNumber": "199999999"
    },
    {
      "taxCountry": "US",
      "taxIdentificationNumber": "999-99-9999"
    }
  ]
}

Potential validation errors from the FATCA/CRS PATCH endpoint include:

Updating information after validation

A customer with a valid signed self-certification cannot directly update the tax information.

The current sequence is:

1. revoke the valid self-certification;
2. call PATCH /fatca-crs to start the new declaration;
3. complete any requested attachments;
4. download and sign the new self-certification before the remediation deadline.

FATCA/CRS assessment

The assessment contains two complementary parts.

FATCA / CRS assessment

Xpollens determines whether supporting evidence is required for the customer's US-person declaration.

Possible attachment types are:

The exact attachment type must come from requiredAttachments. The partner should not infer it solely from the country of birth or country of residence.

FATCA / CRS consistency assessment

Xpollens checks whether the declared tax residences are consistent with the customer information already available.

Examples of potential inconsistencies include:

• the residence country is absent from the tax declaration;
• the customer declares a tax country that is not readily consistent with the residence information;
• US indicia are inconsistent with isUSPerson;
• a required TIN is missing;
• a TIN does not match the expected format.

Tax Information Consistency / Vraisemblance

The following original diagram should be retained because it helps explain when complementary documents may be required.

The exact API outcome and requiredAttachments returned by Xpollens take precedence over deductions made from this diagram.

Supporting attachments

When requiredAttachments is not empty, the partner must:

1. display the exact requested attachment types;
2. collect the corresponding documents;
3. upload them through the attachment endpoint;
4. process attachment callbacks;
5. wait until all required attachments are validated;
6. continue following the self-certification status.

Upload endpoint

Sandbox:

POST https://sb-api.xpollens.com/api/v3.0/users/{AppUserId}/fatca/attachments

Production uses the equivalent production API host.

Prerequisites

This endpoint is intended to be called when:

• the user must provide one of the requested supporting documents.
• As long as self-certification status is AwaitingAttachmentUpload

Request format

The request body is JSON. The supported media types declared by the Swagger include:

• application/json;
• application/json-patch+json;
• application/*+json;
• text/json.

The body follows this structure:

{
  "type": "23",
  "files": [
    {
      "name": "w8-ben.pdf",
      "content": "<base64-encoded file content>"
    }
  ]
}

FATCA diligence subtype referential

Supported file formats and size limits

The file name must include an extension.

Supported extensions are:

• JPEG;
• GIF;
• TIFF;
• PNG;
• BMP;
• ZIP;
• PDF.

The Swagger states the following maximum file sizes:

• 50 MB for a ZIP archive;
• 20 MB for any other file.

Number of files

The Swagger states that a diligence other than an identity diligence must not contain more than one document.

For FATCA/CRS, the safe integration rule is therefore:

• submit one file per diligence request;
• create separate upload requests when several supporting documents are required.

Success response

A successful upload returns HTTP 201 Created with a FatcaDiligenceDto, including:

• type;
• status;
• uploaded file references;
• creationDate;
• lastUpdate.

Each returned file reference contains:

• name;
• key.

The key can be used to retrieve the uploaded attachment.

Download an uploaded attachment

GET /api/v3.0/users/{AppUserId}/fatca/attachments/{Key}

The response uses a DiligenceBlobDto containing:

• fileName;
• contentType.

Documented errors

The broader diligence schemas also document validation cases such as:

• missing type;
• missing files;
• missing file name;
• missing file content;
• unknown diligence type;
• unsupported document type;
• diligence type not expected for the current demand.

Attachment lifecycle

The documented attachment statuses are:

The attachment callback may also provide:

• id;
• attachmentType;
• requestDate;
• uploadDate;
• decisionDate;
• rejectReason;
• lastUpdate;
• comments.

A technically successful upload does not mean that the document has been validated.

Other CRS supporting documents

For an OtherDocs request, the partner should ask the customer to provide evidence explaining the discrepancy.

Depending on the case, evidence may include:

• a tax assessment;
• a tax-residency certificate;
• proof of employment or assignment abroad;
• proof of studies or enrolment;
• another document requested by the Xpollens Middle Office team.

The partner should display the requested diligence and any rejection comments returned by Xpollens rather than promise a specific document in advance.

Self-certification lifecycle

The self-certification lifecycle is distinct from the overall FATCA/CRS lifecycle.

Self-certification statuses

Self-certification lifecycle

graph TD

classDef action fill:#d9ecfb,stroke:#1683c4,stroke-width:1px,color:#263746
classDef status fill:#fff5cc,stroke:#e4b72b,stroke-width:1px,color:#263746

A["User declares tax info"]

subgraph Complementary_documents
    B["Awaiting Attachment Upload"]
    C["User sends Attachment"]
    D["Under Attachment Review"]

    B --> C
    C --> D
    D -->|Document refused| B
end


subgraph Certification_zone

    subgraph FATCA_update
        R["User uses FATCA patch before signing"]
        S["Aborted - new SC is created"]

        R --> S
    end


    subgraph Self_certification
        E["UnderPdfGeneration"]
        F["AwaitingDownload"]
        G["User downloads self-certification"]
        H["AwaitingSignature"]
        I["User signs self-certification"]
        J["UnderSignedPdfGeneration"]
        K["Validated"]

        E --> F
        F --> G
        G --> H
        H --> I
        I --> J
        J --> K
    end


    subgraph Rejection
        P["User rejects self-certification"]
        Q["Rejected - new SC is NOT created"]

        P --> Q
    end

end


subgraph Post_validation
    L["User revokes self-certification"]
    M["Revoked - RevalidationRequested"]
    N["Expired - RevalidationRequested"]

    L --> M
end


A --> B
A -->|No complementary document required| E
D -->|All docs validated| E

F --> P
H --> P

B -.-> R
D -.-> R
F -.-> R
H -.-> R

K --> L
K -->|Validation date greater than 3 years| N


%% Layout helpers
R ~~~ E
E ~~~ P


%% Apply styles
class A,C,G,I,L,P,R action
class B,D,E,F,H,J,K,M,N,Q,S status

Retrieve self-certification details

GET /api/v4.0/users/{appUserId}/fatca-crs-self-certification/{selfCertificationId}

The response can include:

• status;
• isUsPerson;
• isCurrent;
• signatureDate;
• expirationDate;
• lastUpdate;
• taxInformation;
• attachments;
• requiredAttachments.

Download the self-certification

GET /api/v4.0/users/{appUserId}/fatca-crs-self-certification/{selfCertificationId}/download

The endpoint returns an application/pdf binary response.

When called while the status is AwaitingDownload, it returns the unsigned PDF and changes the status to AwaitingSignature.

The unsigned version can also be retrieved in the following states:

• AwaitingSignature;
• Rejected.

The unsigned PDF has no legal value.

When the self-certification is:

• Validated;
• Revoked;
• Expired;

the same endpoint can return the signed version.

Sign the self-certification

POST /api/sca/v4.0/users/{appUserId}/fatca-crs-self-certification/{selfCertificationId}/sign

Call this endpoint only when the status is AwaitingSignature.

This endpoint:

• requires Strong Customer Authentication;
• records the customer's acceptance of the PDF content;
• does not require the partner to upload a separately signed PDF according to the supplied Swagger;
• changes the status to UnderSignedPdfGeneration;
• is followed asynchronously by Validated.

Reject the self-certification

POST /api/v4.0/users/{appUserId}/fatca-crs-self-certification/{selfCertificationId}/reject

The customer may reject the content while the self-certification is:

• AwaitingDownload;
• AwaitingSignature.

The status changes to Rejected.

Rejecting the self-certification does not automatically start another declaration. To restart the process, the partner must call PATCH /fatca-crs.

Revoke a valid self-certification

POST /api/sca/v4.0/users/{appUserId}/fatca-crs-self-certification/{selfCertificationId}/revoke

Call this endpoint only when the self-certification is Validated.

The revoke operation:

• requires Strong Customer Authentication;
• changes the self-certification status to Revoked;
• changes the global FATCA/CRS status to RevalidationRequested;
• does not itself start the replacement self-certification.

The partner must then call PATCH /fatca-crs to start the new process.

FATCA/CRS statuses

The FATCA/CRS process is composed of three distinct levels and lifecycles:

1. the global FATCA/CRS declaration;
2. the self-certifications;
3. the supporting attachments.

Global FATCA/CRS statuses

Remediation information

When revalidation is required, the resource may include:

Possible remediation reasons are:

• SelfCertificationExpired;
• SelfCertificationRevokedByCustomer;
• CustomerInformationChanged.

A customer-information change may include a change to:

• residence country;
• birth country;
• nationality.

The process must only be considered complete when:

• the global FATCA/CRS status is Validated;
• the current self-certification is Validated;
• no mandatory attachment remains outstanding.

FATCA/CRS API and callback inventory

The following table summarizes the APIs and callbacks used in the FATCA/CRS journey.

APIs

Callbacks

Callback handling expectations

Callbacks must not be confused with the synchronous response of the API that initiated a change. A partner may receive the new state immediately in an API response and later receive a callback for the same persisted transition.

For every callback, the partner should:

• use Webhook-Id as the idempotency key;
• use Webhook-Processdate as the callback emission timestamp;
• acknowledge receipt quickly;
• process business logic asynchronously;
• tolerate duplicate and out-of-order delivery;
• retrieve the latest resource state through the corresponding GET API when the event payload is incomplete or ambiguous.

TinFormatsUpdated callback contract

The callback is emitted when a new valid version of the TIN-format and mandatory-country referential becomes available.

Headers

Payload

{
  "type": "TinFormatsUpdated",
  "contentVersion": 2
}

Expected responses

Recommended processing

When the callback is received:

1. compare its contentVersion with the locally cached version;
2. call GET /api/v3.0/tin-formats/version when reconciliation is required;
3. call GET /api/v3.0/tin-formats when the received version is newer;
4. validate the returned contentVersion;
5. replace the cached referential atomically;
6. keep the previous valid version until the new referential has been fully loaded.

Partner logo

A partner logo is required to generate the self-certification PDF.

Format and size should be :

• JPEG/PNG (prefered)
• 372 × 100 px

• 74.2 × 19.3 mm

The logo should be tested in a generated pre-production PDF before go-live.

Test scenarios

The scenarios below preserve all cases described in the original FATCA/EAI documentation and add the API-validation cases introduced by the current FATCA/CRS APIs.

The exact statuses and attachments returned by Xpollens remain authoritative. In particular, the partner must use requiredAttachments rather than infer the final document list only from the customer profile.

Original FATCA/EAI consistency scenarios

Current API validation and lifecycle scenarios

In pre-production, end-to-end scenarios involving document review should be coordinated with the customer integration manager because sandbox review may require manual intervention.

Pre-production testing

The test plan should cover:

• initial declaration without attachments;
• initial declaration requiring W9;
• initial declaration requiring W8-Ben;
• initial declaration requiring OtherDocs;
• valid and invalid TIN formats;
• mandatory and optional TIN countries, including France and non-CRS/EAI jurisdictions;
• TIN-referential version refresh;
• attachment upload;
• attachment review and rejection;
• unsigned PDF generation;
• first PDF download and transition to AwaitingSignature;
• signature with SCA;
• signed PDF generation;
• self-certification rejection;
• valid self-certification revocation with SCA;
• revalidation after customer-information change;
• revalidation after expiration;
• remediation deadline and NonCompliant;
• duplicate and out-of-order callbacks;
• callback reconciliation with GET endpoints.

Go-live checklist

• The SCA behaviour of PATCH /fatca-crs has been formally confirmed.
• The current TIN referential is loaded before collecting customer data.
• The TIN referential is refreshed when contentVersion changes.
• The partner supports up to three tax countries.
• The partner displays the TIN format and mandatory status for each selected country.
• Historical TIN-optional cases are reconciled with the current isTINMandatory referential.
• The partner handles US_PERSON_INCONSISTENCY and TIN_INVALID.
• The v3 JSON/Base64 attachment upload contract is implemented and tested.
• FATCA diligence subtype IDs are mapped correctly.
• File extensions, Base64 encoding and size constraints are enforced.
• The effective request-level size limit has been confirmed.
• Attachment callbacks are processed idempotently.
• The partner waits for AwaitingDownload before downloading the unsigned PDF.
• The partner displays the PDF before signing.
• The sign endpoint uses the required SCA journey.
• The partner handles UnderSignedPdfGeneration before Validated.
• The partner handles customer rejection.
• The partner handles revocation and revalidation.
• The global, self-certification and attachment lifecycles are evaluated independently.
• The signed PDF remains available to the customer as required.
• The logo orientation and supported format are confirmed.
• All flows have been validated in pre-production.

Related resources

• OECD — Automatic exchange of information
• OECD — Tax identification numbers
• IRS — Form W-8BEN
• IRS — Form W-9
